Simple OData in D365 FO

Setup Postman to call D365 F&O Data Entities

·        You’ll need Postman, Tenant ID, Client ID, Client secret value, and D365 F&O URL environment

Create Get token request in Postman

• System administration > Setup > Microsoft Entra ID applications

• Click “New” -> Enter APP-ID(client id ), Meaningful name and User ID (the permission you would like to assign).




1.    Create a GET request then enter the URL to be the following. Replace <Tenant ID> to be your Tenant ID in the Azure Portal.

https://login.microsoftonline.com/<Tenant ID>/oauth2/v2.0/token

2.    Select Headers tab and specify the following values. Most should be the default value. However, you will need to set the Host to login.microsoftonline.com

1.    Click on the Body tab and specify the following key Value pairs

·        Client_id can be found in the App registration

·        Client_secret is the client secret value in the App registration

·        Grant_type should be the test ‘client_credentials’

·        Scope should be the URL instance that you wish to connect to, followed by the text ‘/.default’

·        Click save and send the request

The above access token will be used to authenticate the OData URLs.

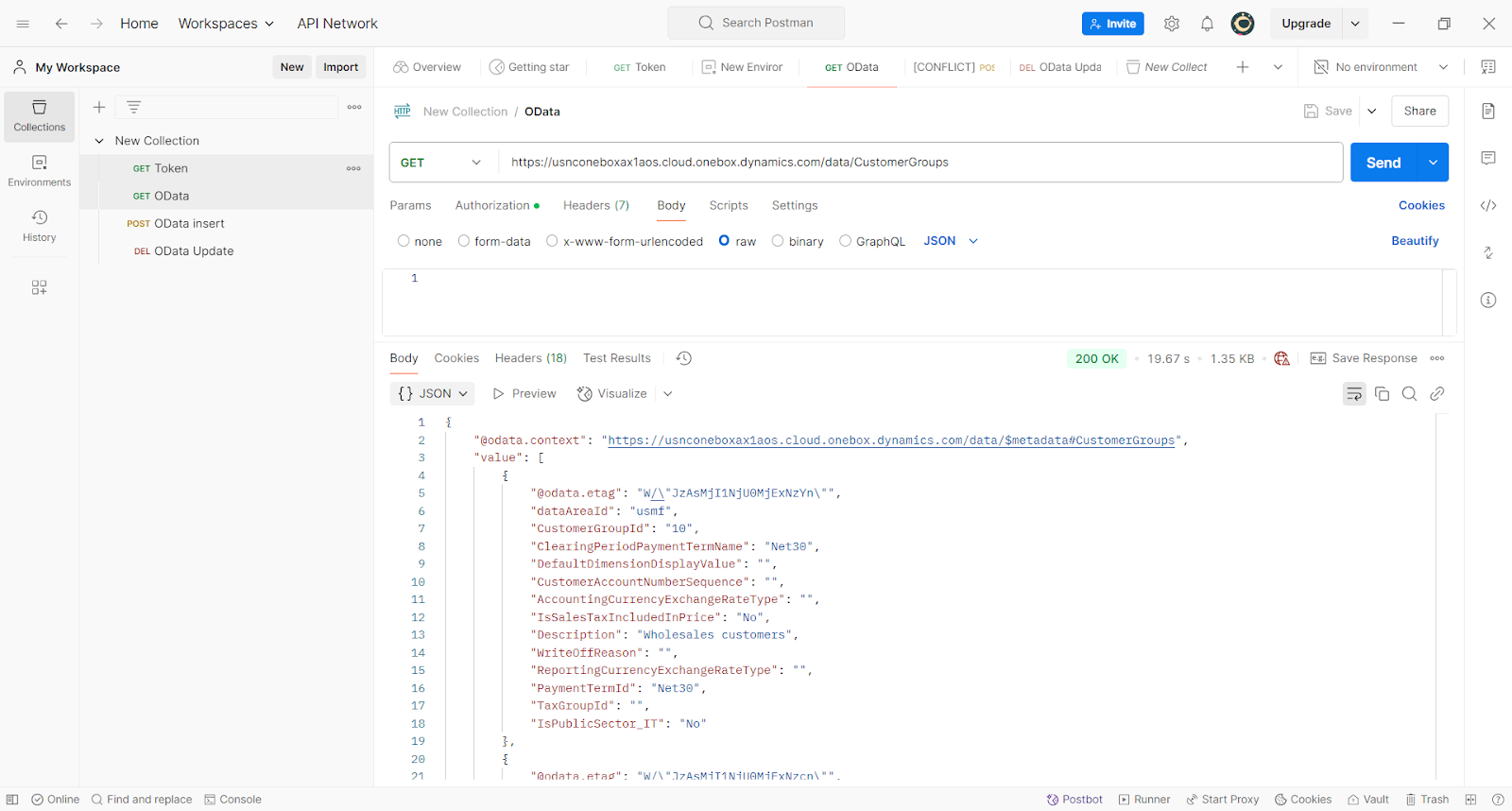

1) Get   :D365 URL/Data/Public collection name

2)Post  :in order to insert the data

Create new record 12345

3) Patch : in order update the records we need to pass the values along with URL's

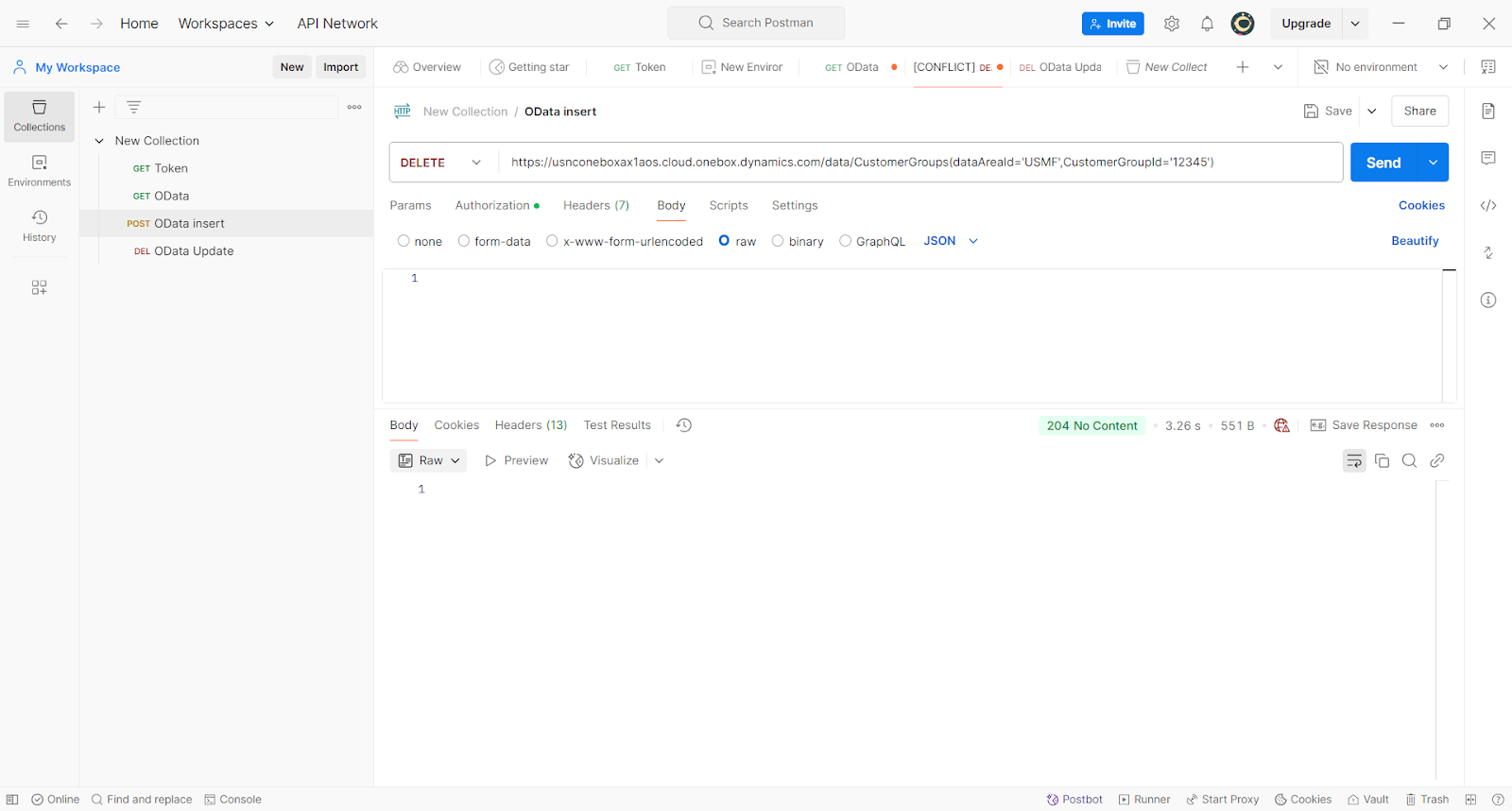

4) Delete  :  in order Delete the records we need to pass the values along with URL's

by using  $expand keyword to include data from the related table and $select to specify the fields to retrieve.

https://usnconeboxax1aos.cloud.onebox.dynamics.com/data/PurchaseOrderHeadersV2?$filter=dataAreaId eq 'USMF'&Cross-company=true&$select=PurchaseOrderNumber,VendorOrderReference&$expand=PurchaseOrderLinesV2 ($select=PurchaseOrderNumber,LineNumber)

reference : https://learn.microsoft.com/en-us/dynamics365/fin-ops-core/dev-itpro/data-entities/odata
